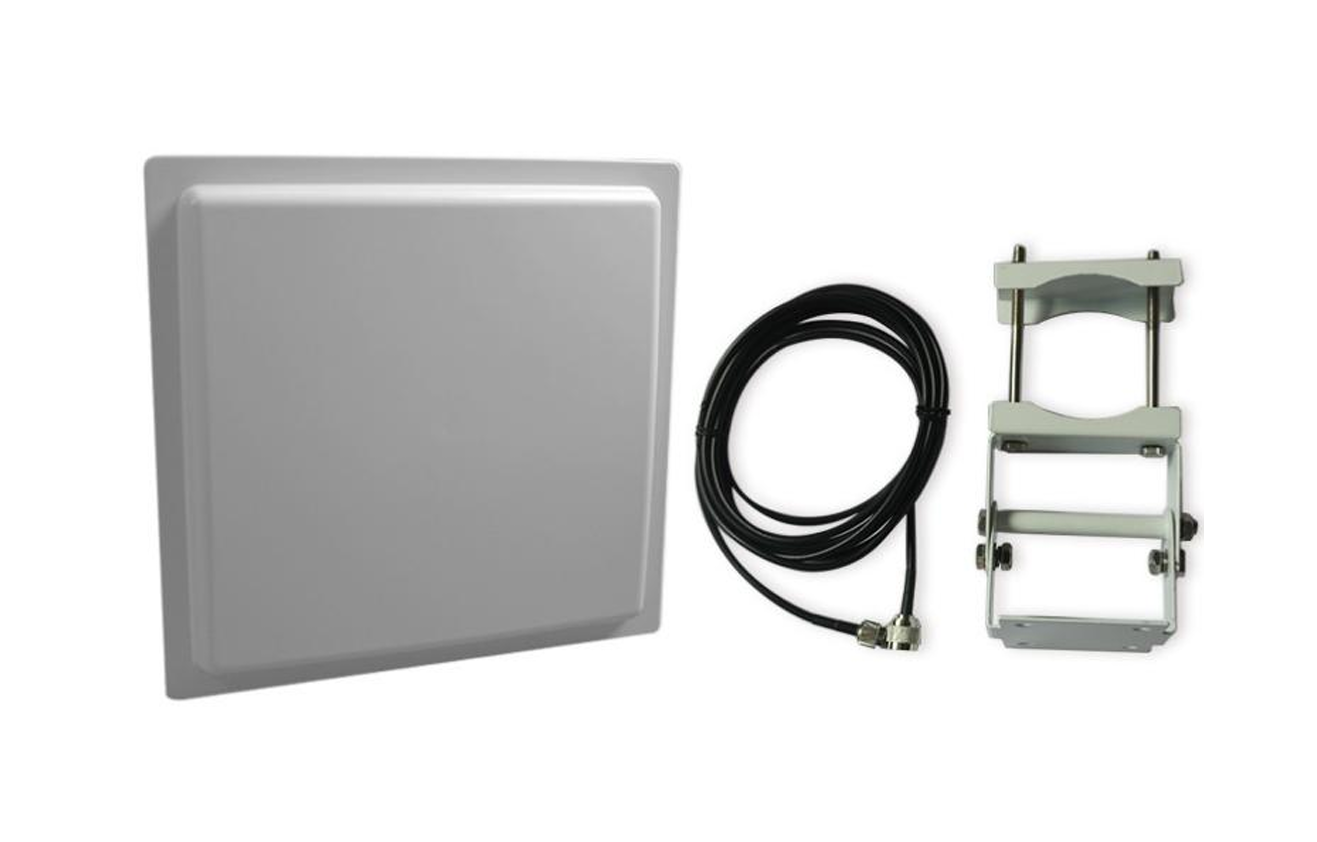

UHF RFID Antenna Reader
RFID reader for ETC toll solutions. Outstanding UHF performance for contactless, free-flow Electronic Toll Collection, engineered for speed, reliability and 100% UAE compliance.
Contactless Toll Collection at Highway Speed
Our UHF RFID antenna is designed for Electronic Toll Collection (ETC) systems, delivering outstanding UHF performance with fast read/write, long read distance and high security.
With high sensitivity, superior reading performance, long-distance and multi-tag reading ability, it ensures accuracy, speed and security. Featuring IP67 protection and good waterproofness, it is ideal for intelligent transport, expressway management, logistics and warehouse applications.
- Attractive design, install and use conveniently
- Fast read & write, high performance, long read & write distance
- IP67 (Water & Dust Proof)
- Only for ETC Toll applications
- Country of Origin: UAE (European Standard)
Technical Specifications
UHF RFID Antenna for ETC Toll, Ant-RC12-455/455 series.
Electrical
| Frequency Range | 902-928MHz / 865-868MHz (Only for ETC Toll) |
| Polarization Type | RHCP |
| Gain | 120dBi |
| 3dB Beam-Width, H-Plan | 40° |
| 3dB Beam-Width, E-Plan | 38° |
| VSWR | ≤1.3 |
| Front to back Ratio | ≥17dB |
| Input Impedance | 50Ω |
| Max Input Power | 20W |
| Lightning Protection | DC Grounded |
| Country of Origin | UAE (European Standard) |
Mechanical
| Connector Type | N-Type Female |
| Dimensions (H×W×D) | 445 × 445 × 30 mm |
| Weight | 2.66 kg (with mounting bracket) |
| Radome Material | ABS |
| Radome Color | Off-white |
| Radiant board material | Aluminum |
| Operating Temperature | -40°C / +60°C |
| Sealing | IP57 (Waterproof) |
| Installation Mode | Pole mounted |
| Support Pole Diameter | Φ30-Φ50 mm |
| Rated Wind Velocity | 60 m/s |
Order Information
- 865-868MHz: Ant-RC12-455/455-EU
- 902-928MHz: Ant-RC12-455/455-CA
- Accessories: Antenna cables (optional, customizable): Ant-CA-SMA.M/N.M-LMR4-150M
- Mounting sets (optional): Ant-MOT-RC12-455/455-P
Installation
The antenna is installed on a steel frame or pillar through its own bracket and connected to the reader by coaxial cable. It can be mounted horizontally or vertically depending on the bracket orientation, and the tilt angle can be adjusted after installation for the best reading performance. Suitable for outdoor use, but not for acid-base environments.
- Fix the bracket to the antenna with quarter US flange nuts.
- Fix the antenna on a vertical steel frame or pillar with M8 × 125 mm screws, washers and screw nuts.
Applications & Use Cases
Intelligent Transport
Expressway management with automatic identification of driving route, traffic flow and information collection.
ETC Toll
Free-flow toll collection at highway speeds for expressways, bridges and tunnels.
Intelligent Parking
Contactless entry and exit with long-range tag detection.
Logistics & Warehouse
Track and manage inventory movement with long-range UHF reading.
Sports Events
Fast multi-tag reading for event access control and tracking.
Healthcare & Electricity
Asset and equipment tracking for hospitals and power utilities.
