LB-SM128 (E710) Fixed Reader
A professional-grade 4-port UHF RFID fixed reader by Lebron Infotech FZ LLC, UAE, paired with the SM-T0450 12dBi circular antenna for toll lanes and access control.
4-Port UHF Reader with Impinj E710
Four TNC antenna ports, the Impinj E710 chip and a wide 860-960 MHz band give strong multi-tag recognition and long read distance. Ethernet, serial and relay I/O make it easy to integrate with barriers, cameras and the toll back office.
Technical Specifications

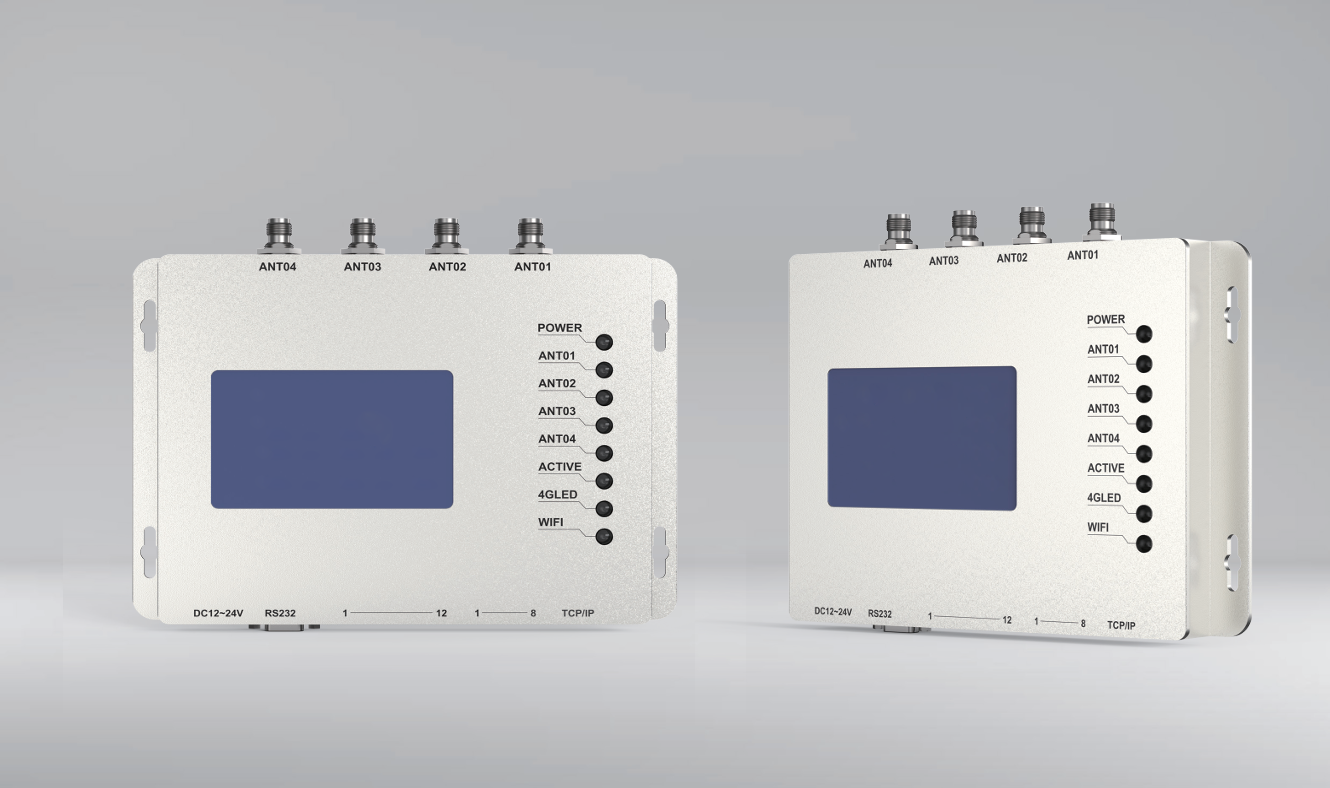

LB-SM128 (E710) UHF RFID 4-port fixed reader.
RF & Performance
| Air Interface | ISO 18000-6C / EPC C1 Gen2 |
| Frequency | 860-960 MHz |
| Max RF Output | 0-33 dBm, adjustable (TM200 standard chip: 13-33 dBm) |
| Tag Processing | >900 tags/s (TM200: >700) |
| Read Range | 0-30 m (max) |
| Native Antenna Ports | 4 (TNC female) |
Interfaces & Environment
| Ethernet | RJ45, 10/100M |
| Serial | RS232 (RS485 A/B pins on GPIO terminal) |
| GPIO / Relay | 2 trigger inputs / 2 relay outputs |
| Reader Operating Temperature | -20 to +75 °C |
| Outdoor Enclosure | IP66 |
| Origin / Manufacturer | Lebron Infotech Fz LLC, UAE |
| 90 km/h Compliance Status | Requires integrated field validation |

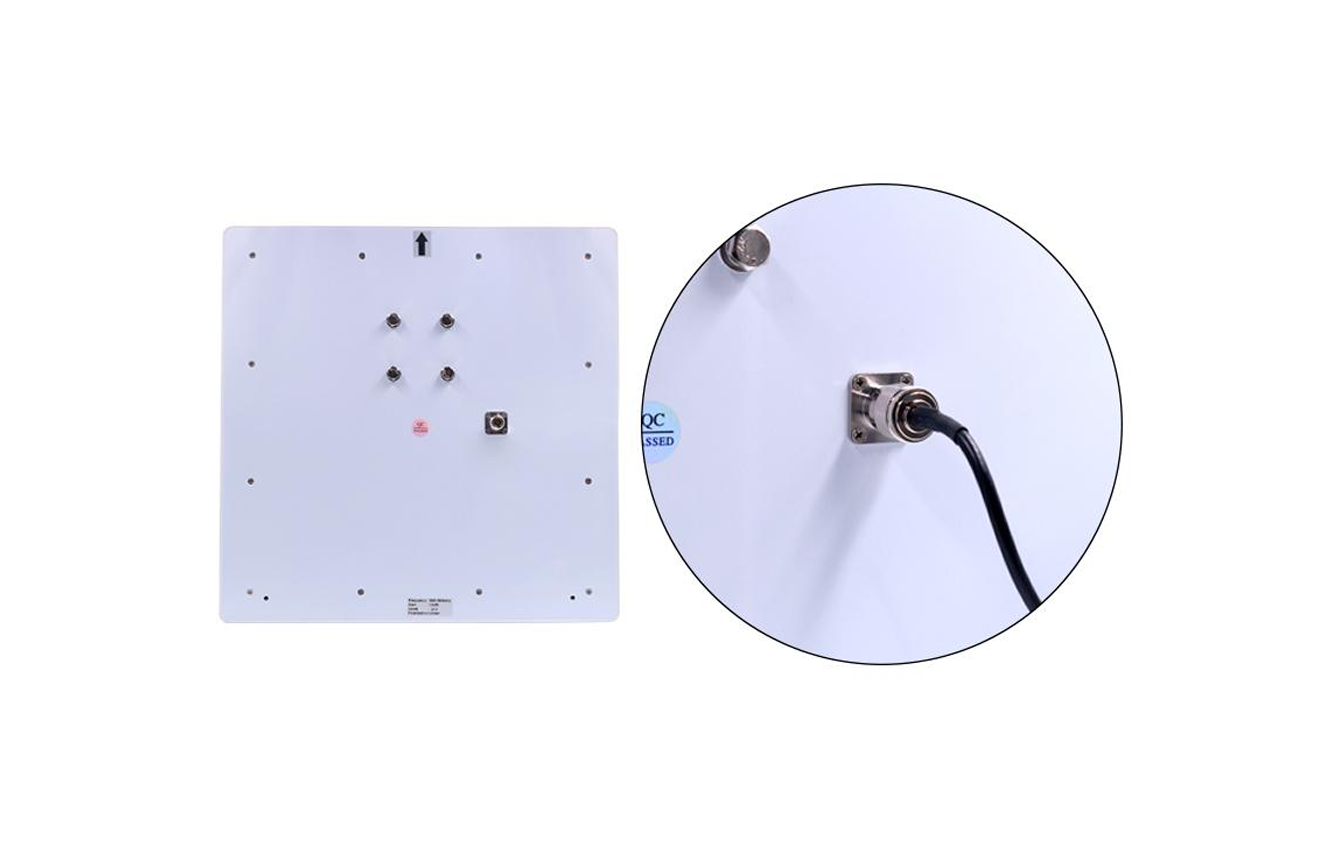

SM-T0450 12dBi Circular Antenna
12 dBi circularly polarised UHF RFID antenna (865-868 MHz / 902-928 MHz), supplied with coaxial cable and an adjustable pole-mount bracket.
Applications & Use Cases
ETC Toll Lanes
Up to four antennas per reader to cover toll lanes with fast multi-tag reading.
Access Control
Trigger inputs and relay outputs connect directly to barriers and gates.
Parking Management
Long-range tag detection for contactless entry and exit.
Logistics & Warehouse
Material control and identification across docks and storage areas.
Interested in the LB-SM128 Reader?
Contact us for pricing, antenna configuration and integration support across UAE.
